The Rococo 3 Column

The Rococo 3 Column cast iron radiator available in 3 different heights but with a greater depth than its sister model. The intricate detailed design and scrolled top provides a true piece of luxury in your home. The Rococo 3 Column has great heat output and with a change in finish it can be suitable for both traditional and modern homes.

The Rococo 3 Column provides great heat output, alongside its beautiful scroll detail provides an excellent addition to your home.

The Rococo 3 Column complements the Rococo 1 Column, the Parisian 2 Column and the Montmartre cast iron radiators.

(Pictured above in Aged Silver Finish)

Arroll provide high–quality cast–iron radiators taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years. All radiators can be provided fully assembled up to 1500mm. Due to the bespoke nature of our cast iron radiators we can build the radiator to your requirements, a radiator tool may be required to build the radiators onsite if over 1500mm long.

·         Pressure tested to 5 bar

·         Guaranteed for 10 years.

·         Integral feet

·         ½” 15mm BSP connections for main valves.

·         Wide range of finish options

·         All cast iron radiators supplied CE Certified to British Standards.

·         See below for all technical information



Find a dealer Download Brochure Radiator builder

Choose:

PRB–470

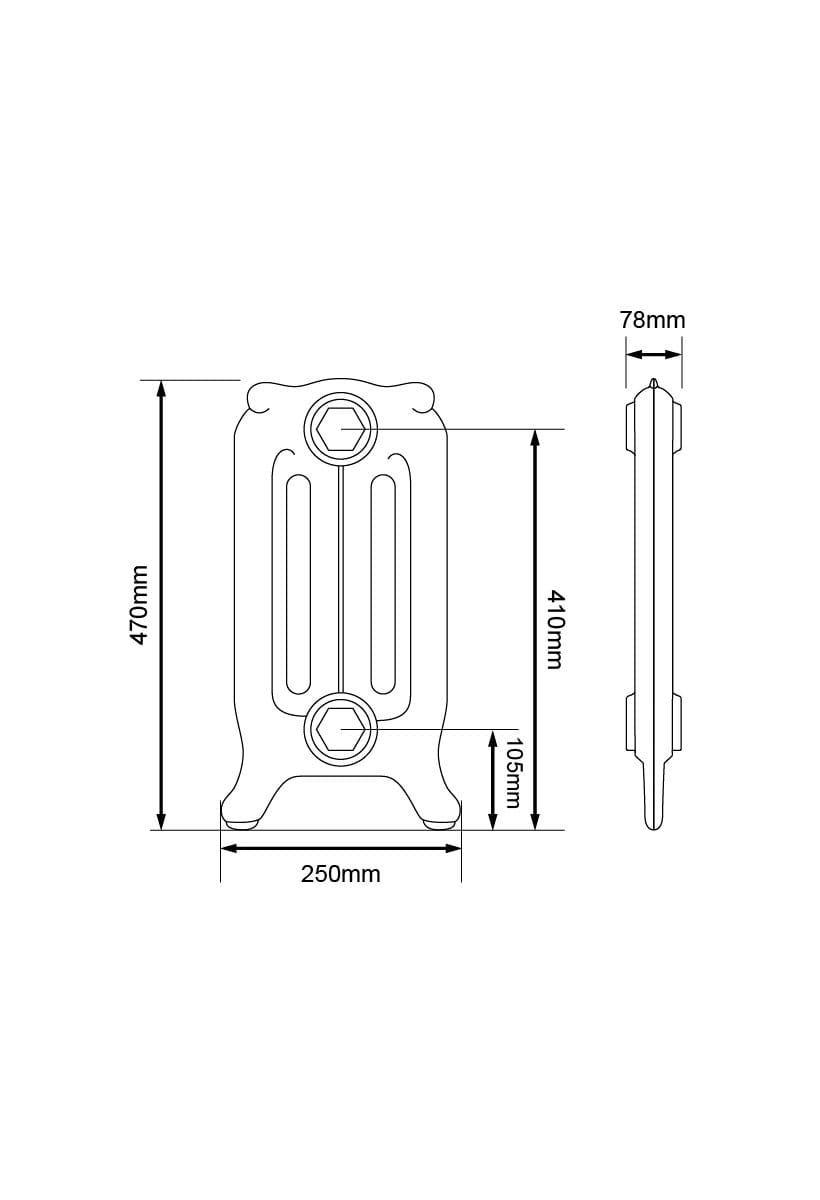

Dimensions

  • Leg Section Height

    470 mm

  • Section Length

    78 mm

  • Middle Section Height

    412 mm

  • Section Depth

    250 mm

  • Bottom Inlet To Floor

    105 mm

  • Top Inlet To Floor

    410 mm

  • Pipe Centres To Skirt

    125 mm

Heat Output (per section)

  • Delta at 50˚C

    95 Watts / 324 BTUs

  • Delta at 60˚C

    119 Watts / 409 BTUs

Weight

  • Empty weight per leg section

    8.1 KG

  • Empty weight per middle section

    6.6 KG

  • Filled weight per leg section

    9.9 KG

  • Filled weight per middle section

    8.4 KG

  • Volume per leg section

    1.8 L

  • Volume per middle section

    1.8 L
