The Chelsea

The intensely decorative Chelsea cast iron radiator revives the 1900s.With this intricate detailing this radiator will stand–out in light and dark colours with harmonizing contrast. The design was originally commissioned for the Chelsea Barracks Officers’ Mess. The original barracks, designed by George Morgan to house two battalions of infantry, were completed in 1862. The barracks comprised a long and monotonous brick structure broken by towers in the centre

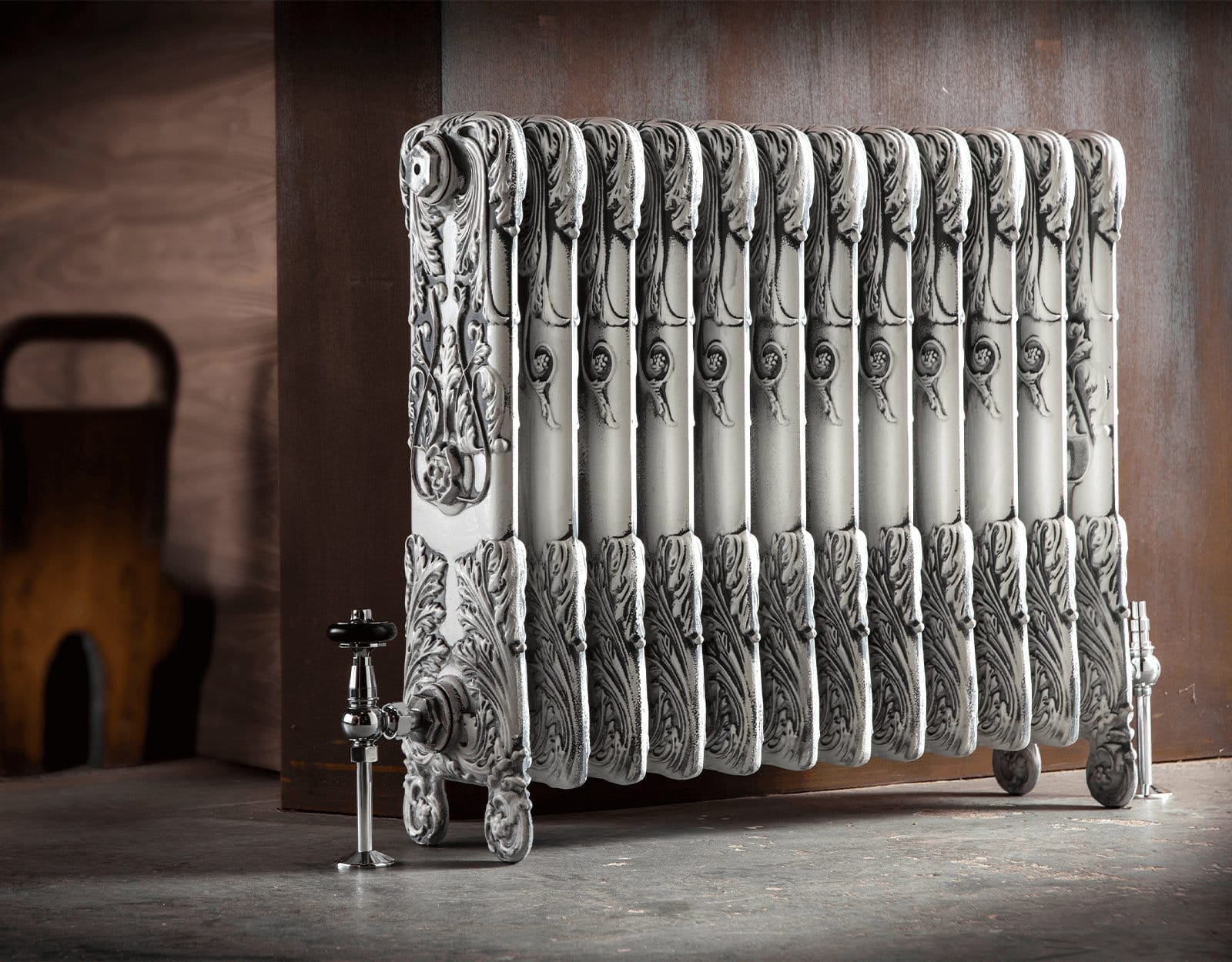

Using our specialist finishes such as Aged White (pictured above) or our hand polishing , really helps to highlight the decorative patterns.

Part of our decorative cast iron radiator range

Arroll provide high–quality cast–iron radiators taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years. All radiators can be provided fully assembled up to 1500mm. Due to the bespoke nature of our cast iron radiators we can build the radiator to your requirements, a radiator tool may be required to build the radiators onsite if over 1500mm long.

·         Pressure tested to 5 bar

·         Guaranteed for 10 years.

·         Integral feet

·         ½” 15mm BSP connections for main valves.

·         Wide range of finish options

·         All cast iron radiators supplied CE Certified to British Standards.

·         See below for all technical information


Find a dealer Download Brochure Radiator builder

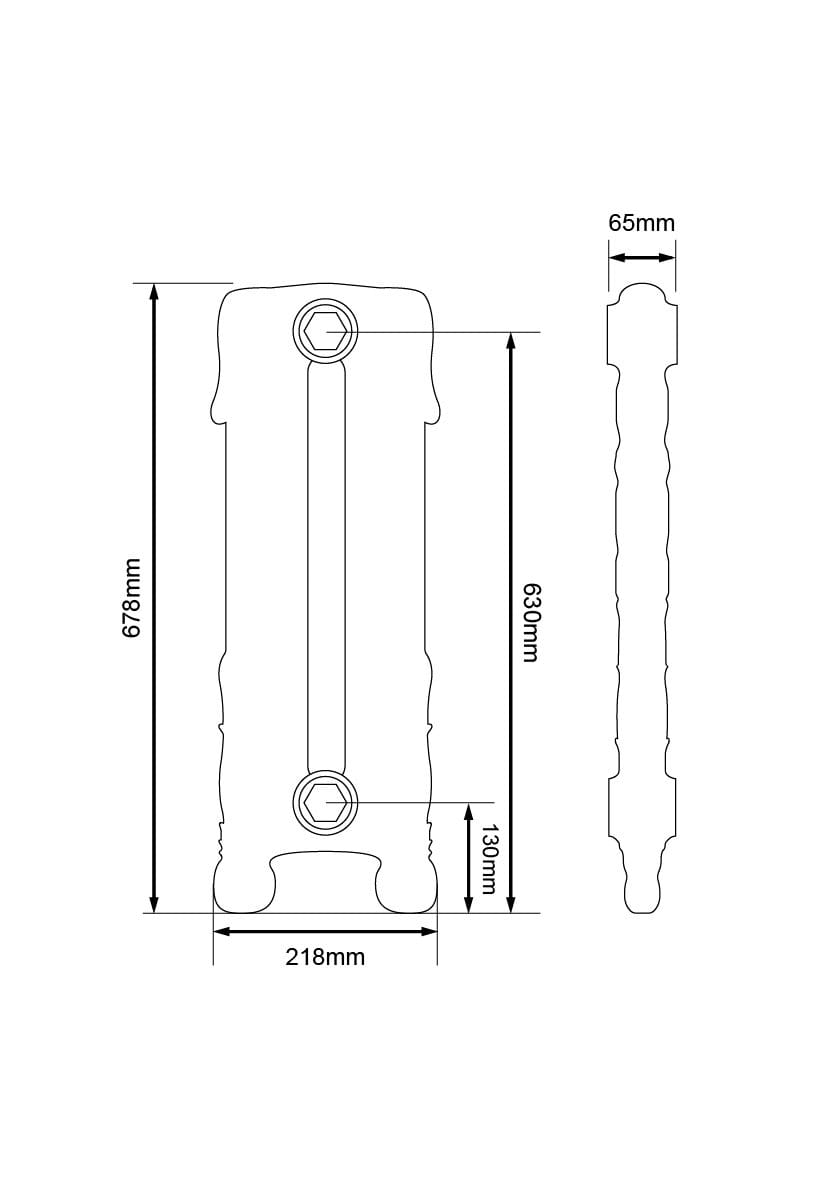

  • Leg Section Height

    678 mm

  • Section Length

    65 mm

  • Middle Section Height

    615 mm

  • Section Depth

    218 mm

  • Bottom Inlet To Floor

    130 mm

  • Top Inlet To Floor

    630 mm

  • Pipe Centres To Skirt

    109 mm

Heat Output

  • Delta at 50˚C

    99 Watts / 338 BTUs

  • Delta at 60˚C

    125 Watts / 426 BTUs


  • Empty weight per leg section

    12.5 KG

  • Empty weight per middle section

    10.8 KG

  • Filled weight per leg section

    14.2 KG

  • Filled weight per middle section

    12.5 KG

  • Volume per leg section

    1.7 L

  • Volume per middle section

    1.7 L
