Column

The Edwardian 2 Column

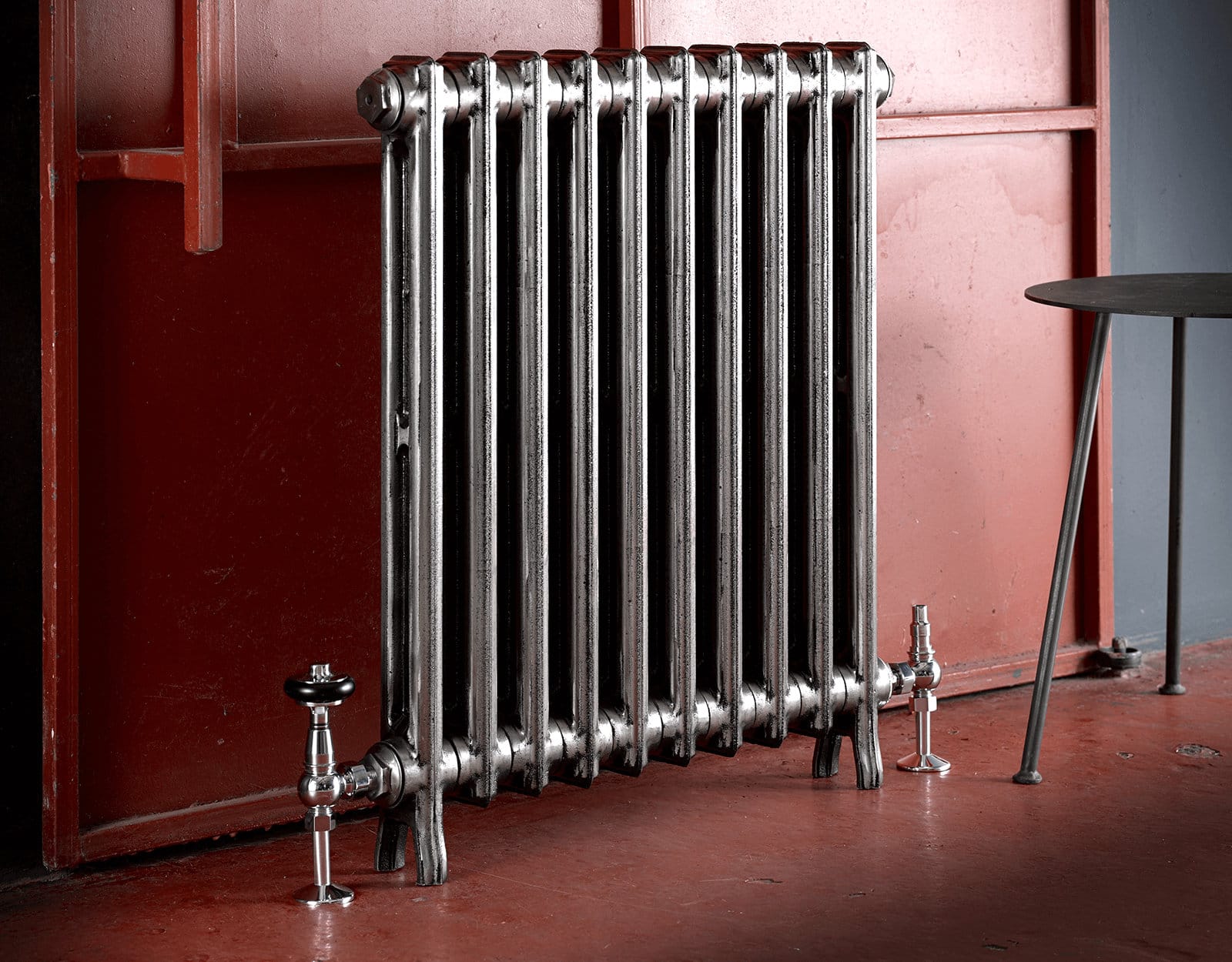

The Edwardian 2 Column Cast Iron Radiator is slimline in design, making it perfect for hallways and small spaces where space is of a premium. The simplistic clean lines inspired by the Edwardian Britain make it ideal for both modern and traditional homes.

The Edwardian 2 Column has 3 different heights and is complementary to the 4 Column and 6 Column.

Arroll provide high–quality cast–iron radiators taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years. All radiators can be provided fully assembled up to 1500mm. Due to the bespoke nature of our cast iron radiators we can build the radiator to your requirements, a radiator tool may be required to build the radiators onsite if over 1500mm long.

·         Pressure tested to 5 bar

·         Guaranteed for 10 years.

·         Integral feet

·         ½” 15mm BSP connections for main valves.

·         Wide range of finish options

·         All cast iron radiators supplied CE Certified to British Standards.

·         See below for all technical information



Find a dealer Download Brochure Radiator builder

Choose:

RE–480/2

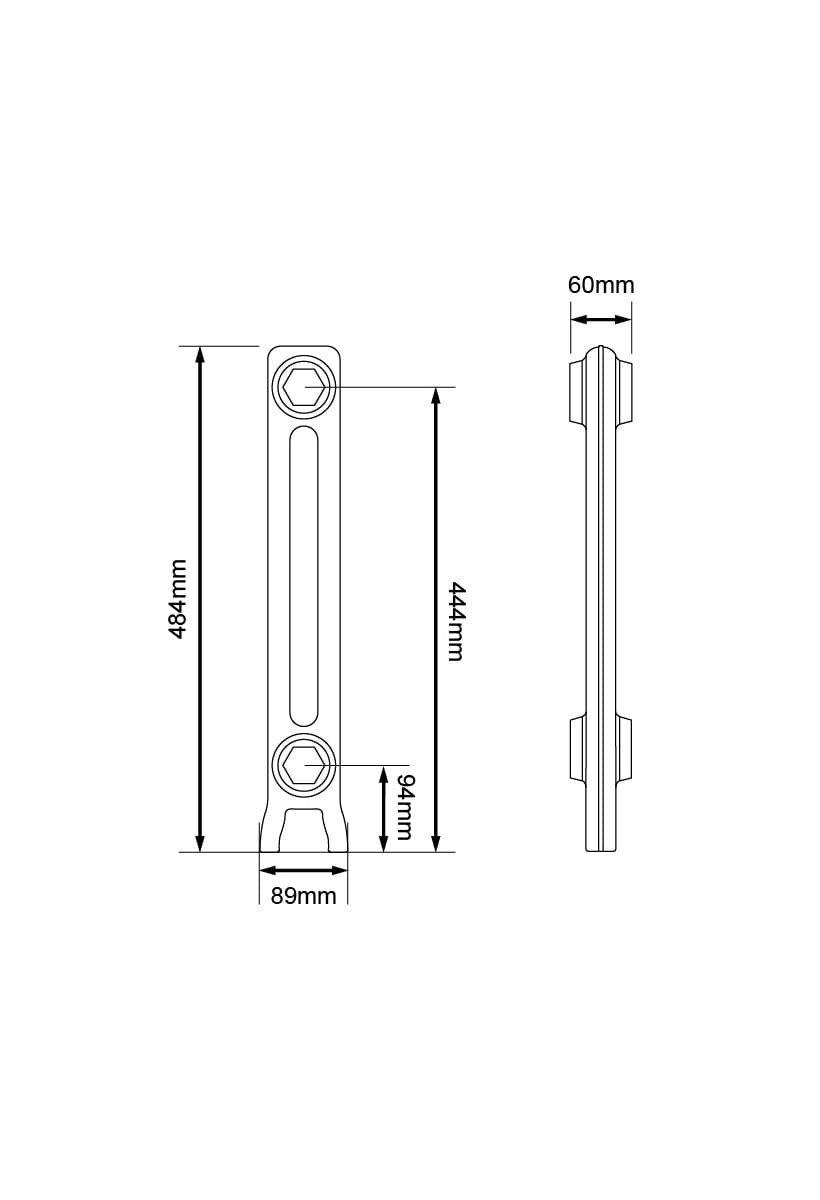

Dimensions

  • Leg Section Height

    484 mm

  • Section Length

    60 mm

  • Middle Section Height

    430 mm

  • Section Depth

    89 mm

  • Bottom Inlet To Floor

    94 mm

  • Top Inlet To Floor

    444 mm

  • Pipe Centres To Skirt

    44.5 mm

Heat Output (per section)

  • Delta at 50˚C

    39 Watts / 134 BTUs

  • Delta at 60˚C

    49 Watts / 169 BTUs

Weight

  • Empty weight per leg section

    3.0 KG

  • Empty weight per middle section

    2.5 KG

  • Filled weight per leg section

    3.4 KG

  • Filled weight per middle section

    2.9 KG

  • Volume per leg section

    0.4 L

  • Volume per middle section

    0.4 L
