Column

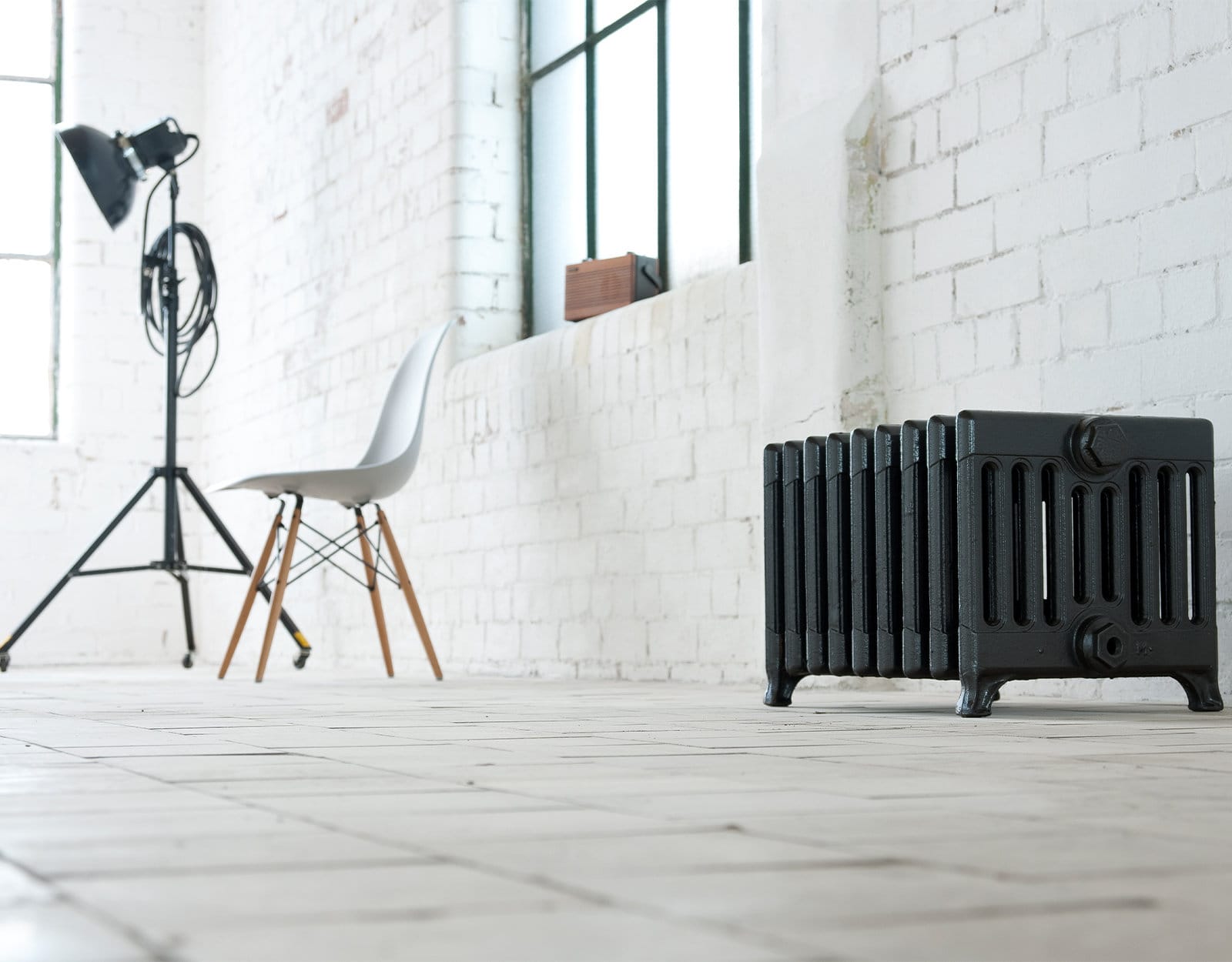

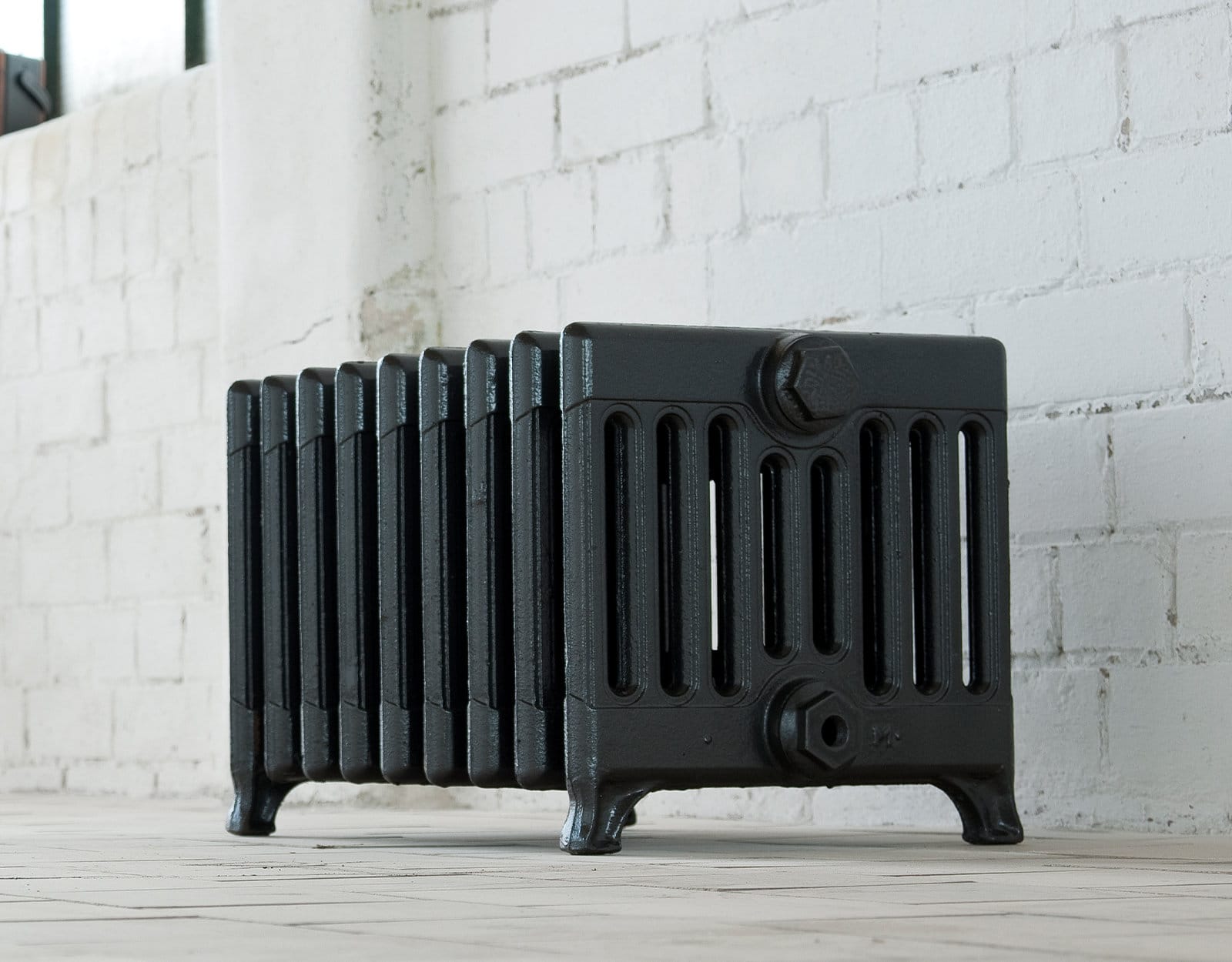

The Victorian 9 Column

Instantly recognisable, we’ve created the Victorian 9 column radiator by taking a mould of an original Ideal Standard Radiator from the National Radiator Company. Unlike the Neo–Classic style, the Victorian has a flat foot on each leg section that helps to prevent damage to floor coverings in the home by spreading its weight more evenly.

Affectionately known by the Arroll staff as the ‘pig’, it is ideal for use in bay windows due to its height. It has a great heat output and using different finishes it can be ideal for both traditional and modern homes.

Pair it with the Victorian 4 Column, Neo–Classic 3 Column and Neo–Classic 4 Column.

Arroll provide high–quality cast–iron radiators taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years. All radiators can be provided fully assembled up to 1500mm. Due to the bespoke nature of our cast iron radiators we can build the radiator to your requirements, a radiator tool may be required to build the radiators onsite if over 1500mm long.

·         Pressure tested to 5 bar

·         Guaranteed for 10 years.

·         Integral feet

·         ½” 15mm BSP connections for main valves.

·         Wide range of finish options

·         All cast iron radiators supplied CE Certified to British Standards.

·         See below for all technical information



Find a dealer Download Brochure Radiator builder

Choose:

RV–330/9

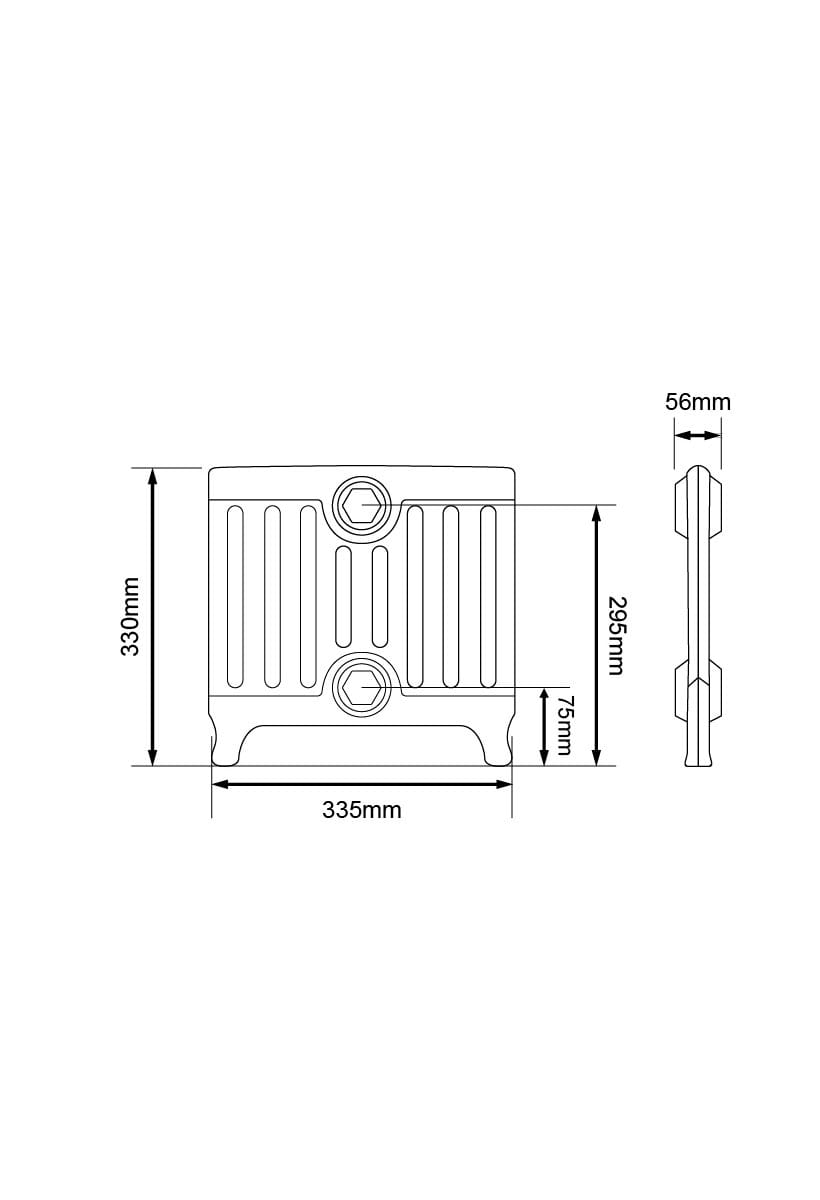

Dimensions

  • Leg Section Height

    330 mm

  • Section Length

    56 mm

  • Middle Section Height

    292 mm

  • Section Depth

    335 mm

  • Bottom Inlet To Floor

    75 mm

  • Top Inlet To Floor

    295 mm

  • Pipe Centres To Skirt

    167.5 mm

Heat Output (per section)

  • Delta at 50˚C

    102 Watts / 348 BTUs

  • Delta at 60˚C

    128 Watts / 439 BTUs

Weight

  • Empty weight per leg section

    7.8 KG

  • Empty weight per middle section

    7.4 KG

  • Filled weight per leg section

    8.6 KG

  • Filled weight per middle section

    8.2 KG

  • Volume per leg section

    0.8 L

  • Volume per middle section

    0.8 L
