The Edwardian 4 Column

The Edwardian 4 Column cast iron radiator is influenced by the Edwardian Era with a curved top and clean, crisp casting lines suited to both modern and traditional homes. The Edwardian range of cast iron radiators has a great heat output.

The Edwardian 4 Column cast iron radiator comes in 4 different heights and is complementary to the Edwardian 2 Column and the Edwardian 6 Column , providing flexibility of placement.

Arroll provide high–quality cast–iron radiators taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years. All radiators can be provided fully assembled up to 1500mm. Due to the bespoke nature of our cast iron radiators we can build the radiator to your requirements, a radiator tool may be required to build the radiators onsite if over 1500mm long.

·         Pressure tested to 5 bar

·         Guaranteed for 10 years.

·         Integral feet

·         ½” 15mm BSP connections for main valves.

·         Wide range of finish options

·         All cast iron radiators supplied CE Certified to British Standards.

·         See below for all technical information



Find a dealer Download Brochure Radiator builder

Choose:

RE–760/4

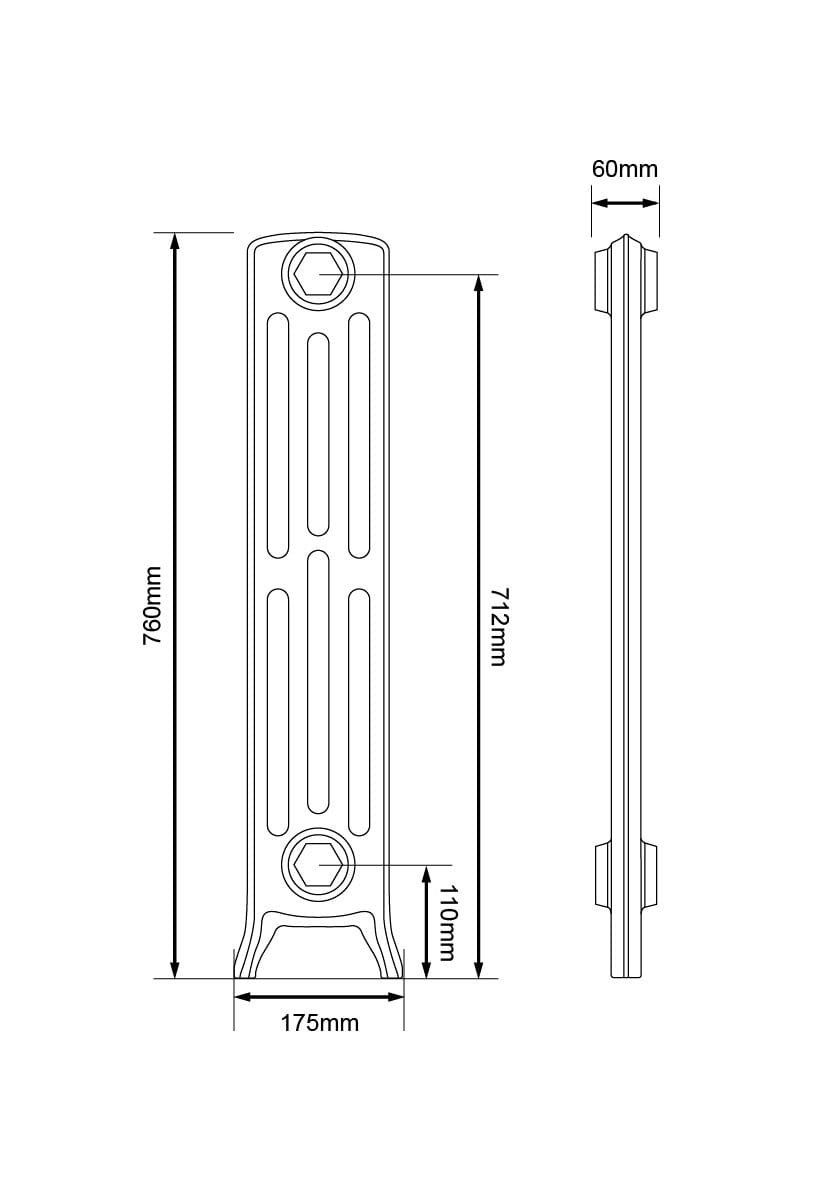

Dimensions

  • Leg Section Height

    760 mm

  • Section Length

    60 mm

  • Middle Section Height

    700 mm

  • Section Depth

    175 mm

  • Bottom Inlet To Floor

    110 mm

  • Top Inlet To Floor

    712 mm

  • Pipe Centres To Skirt

    87.5 mm

Heat Output

  • Delta at 50˚C

    107 Watts / 365 BTUs

  • Delta at 60˚C

    135 Watts / 461 BTUs

Weight

  • Empty weight per leg section

    6.7 KG

  • Empty weight per middle section

    6.3 KG

  • Filled weight per leg section

    7.9 KG

  • Filled weight per middle section

    7.5 KG

  • Volume per leg section

    1.2 L

  • Volume per middle section

    1.2 L
