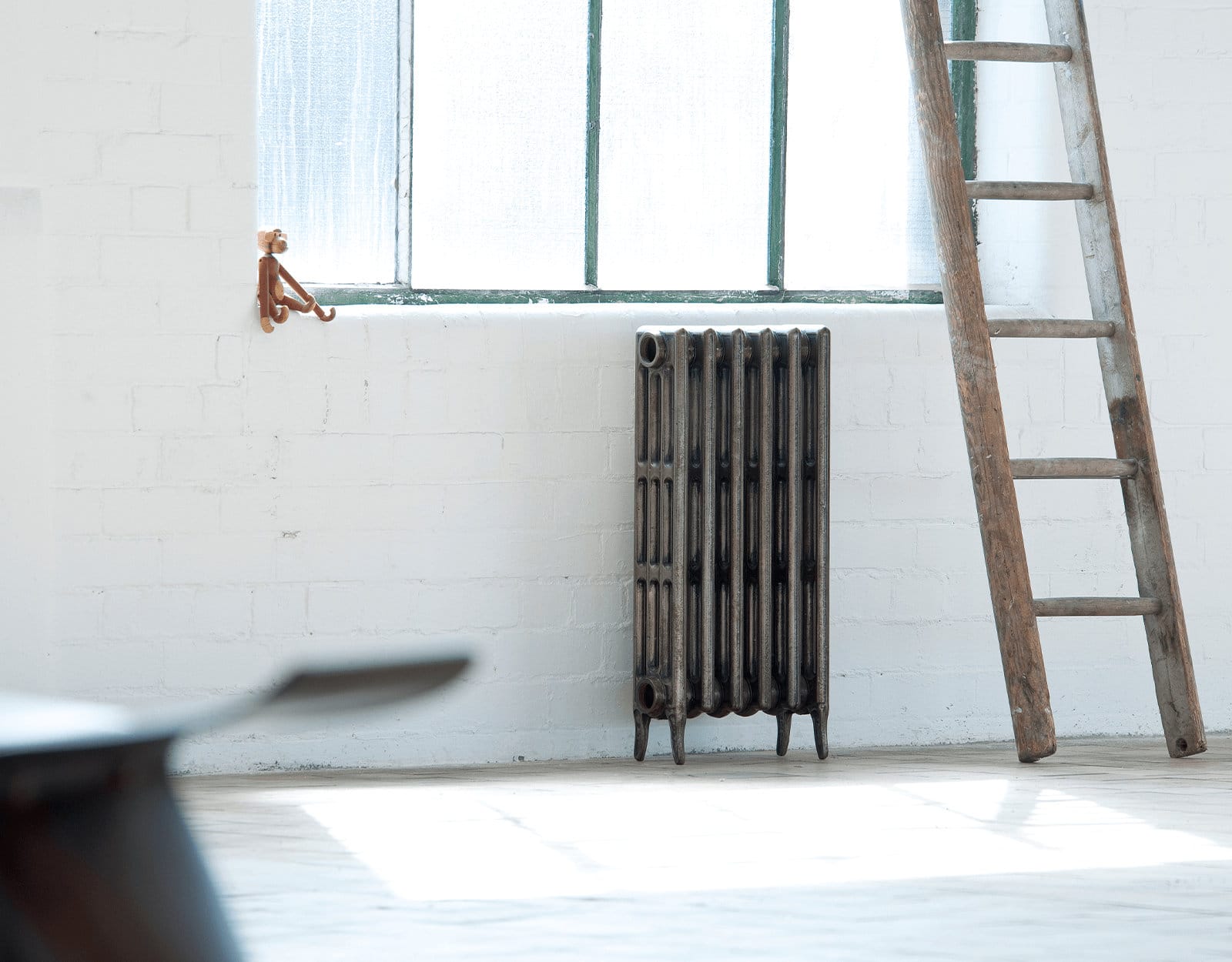

The Neo Classic 4 Column

The Neo Classic 4 Column, is perhaps the most recognisable of all cast iron radiators, based on a Victorian design which was introduced in 1890.

The Neo Classic 4 Column, like the 3 Column is similar in design to the Victorian however it has pointed foot rather than a flat foot.

The simple design makes it ideal for both modern and traditional settings. Our experienced painters can finish your radiator in a colour perfect for your home.

Arroll provide high–quality cast–iron radiators taken from an original design. Manufactured using traditional techniques and guaranteed for 10 years. All radiators can be provided fully assembled up to 1500mm. Due to the bespoke nature of our cast iron radiators we can build the radiator to your requirements, a radiator tool may be required to build the radiators onsite if over 1500mm long.

·         Pressure tested to 5 bar

·         Guaranteed for 10 years.

·         Integral feet

·         ½” 15mm BSP connections for main valves.

·         Wide range of finish options

·         All cast iron radiators supplied CE Certified to British Standards.

·         See below for all technical information



Find a dealer Download Brochure Radiator builder

Choose:

RD–460

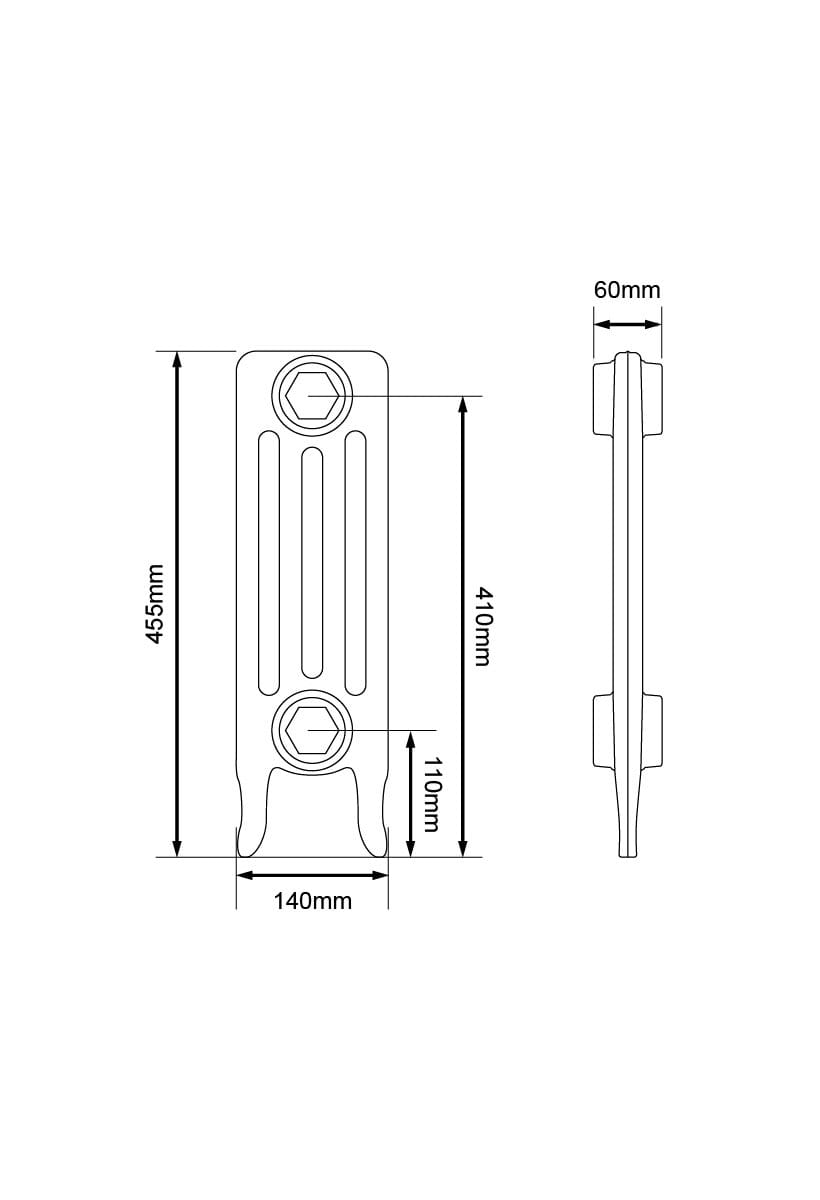

Dimensions

  • Leg Section Height

    455 mm

  • Section Length

    60 mm

  • Middle Section Height

    380 mm

  • Section Depth

    140 mm

  • Bottom Inlet To Floor

    110 mm

  • Top Inlet To Floor

    410 mm

  • Pipe Centres To Skirt

    70 mm

Heat Output (per section)

  • Delta at 50˚C

    57 Watts / 196 BTUs

  • Delta at 60˚C

    62 Watts / 213 BTUs

Weight

  • Empty weight per leg section

    3.4 KG

  • Empty weight per middle section

    3.0 KG

  • Filled weight per leg section

    3.9 KG

  • Filled weight per middle section

    3.5 KG

  • Volume per leg section

    0.5 L

  • Volume per middle section

    0.5 L
